3nh

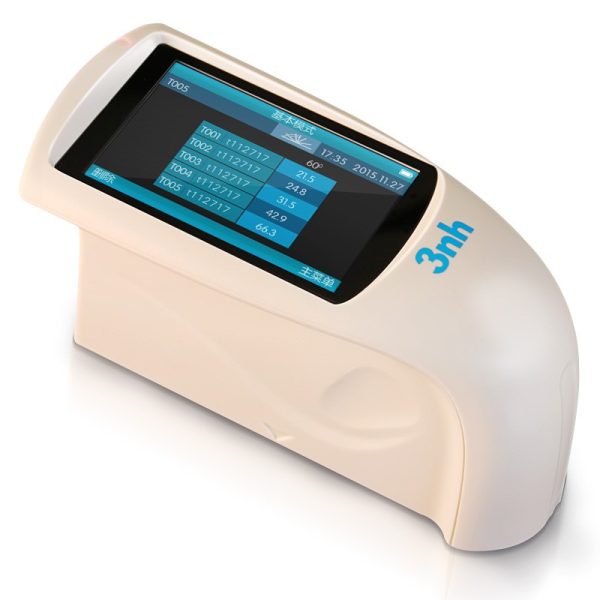

3nh HG60 Economic Gloss Meter
$350.00 USD
3nh HG60S Economic Gloss Meter
$230.00 USD
3nh NHG60 60 degree gloss meter touch screen with GQC6 software
NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
$750.00 USD
1 disponibles
1 disponibles
15
People watching this product now!
Payment Methods:
Descripción
Features:
1. Full touch screen operation and easy to use.
2. Large screen (3.5 inches), high resolution (320*480), full view, clear interface image.
3. Beautiful appearance and structure design in accordance with human mechanics.
4. High hardware configuration, incorporating a number of innovative technologies.
5. Comply to tandard ASTM D523, ASTM D2457, GB/T 1381, GB/T 7706, GB/T 8807.
6. 60 degree measuring angle , 9*15mm measurement aperture.
7. Multiple function settings can meet different needs of customers.
8. PC quality management software has powerful function expansion.
9. Large capacity storage, can store 1000 basic records, 5000 statistical records, 5000 continuous records.
10. Manually enter gloss data for easy operation.
Specifications:
|
NHG60 60° Precise Gloss Meter |
|
|
Model |
NHG60 60 degree gloss meter |
|
Measure Angle |
60° |
|
Measuring Area (mm) |
9X15 |
|
Measurement Range |
0~1000GU |
|
Division Value |
0.1GU |
|
Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-1000GU |
|
Measurement Standard |
Conform with JJG696 first class gloss meter working requirement |
|
Chromaticity Corresponding |
Corresponding with CIE 1931(2°) under CIE C light source |
|
Errors |
±1.2 , ± 1.2% |
|
Measuring Time |
0.5s |
|
Dimension |
L*W*H : 160mm*75mm*90mm |
|
Weight |
350g |
|
Language |
Chinese/English |
|
Battery |
3.7v, 3200mAh Li-ion Battery, >10000 times(within 8 hours) |
|
Viewing Screen |
TFT 3.5 inch, capacitive touch screen |
|
Interface |
USB/RS-232 |
|
Data Save |
Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000 |
|
Software |
GQC6 Quality Control Software with QC report printing functions and more extended functions. |
|
Operation Temperature |
0~40℃（32~104°F） |
|
Storage Temperature |
-20~50℃（-4~122°F） |
|
Humidity |
<85% relative humidity, no condensation |
|
Standard Accessories |
Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
|
Optional Accessories |
Miniature Printer |
