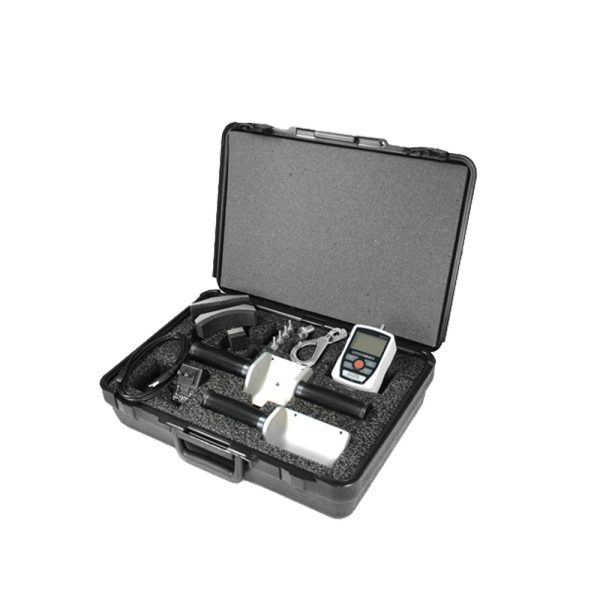

Mark-10 EK3-100 Ergonomic Test Kit 100lbf
$1,221.00 USD
Mark-10
Mark-10 EKE-500-2 Profesional Ergonomic Test Kit 500lbf (2,500N)
El Mark-10 EKE-500-2 Professional Ergonomic Test Kit 500 lbf es un kit profesional para realizar pruebas de fuerza ergonómica de hasta 500 lbf (2.225 N). Está diseñado para medir fuerzas de empuje, tracción y otras aplicaciones ergonómicas de manera precisa, facilitando la evaluación de esfuerzos físicos en entornos industriales, de manufactura y seguridad laboral.
$2,204.00 USD
En existencia
En existencia
14
People watching this product now!
Payment Methods:
Descripción
- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
- Click-Lock® accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory – data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR® Lite data collection software.
- Statistical calculations for saved data points
| ccuracy: | ±0.2% of full scale |
| Sampling rate: | 7,000 Hz |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units: | lbF, ozF, gF, kgF, N, kN (depending on model, see below) |
| USB output: | Configurable up to 115,200 baud. |
| Safe overload: | 200% of full scale (display shows “OVER” at 110% and above) |
| Weight: | 1.7 lb [0.8 kg] |

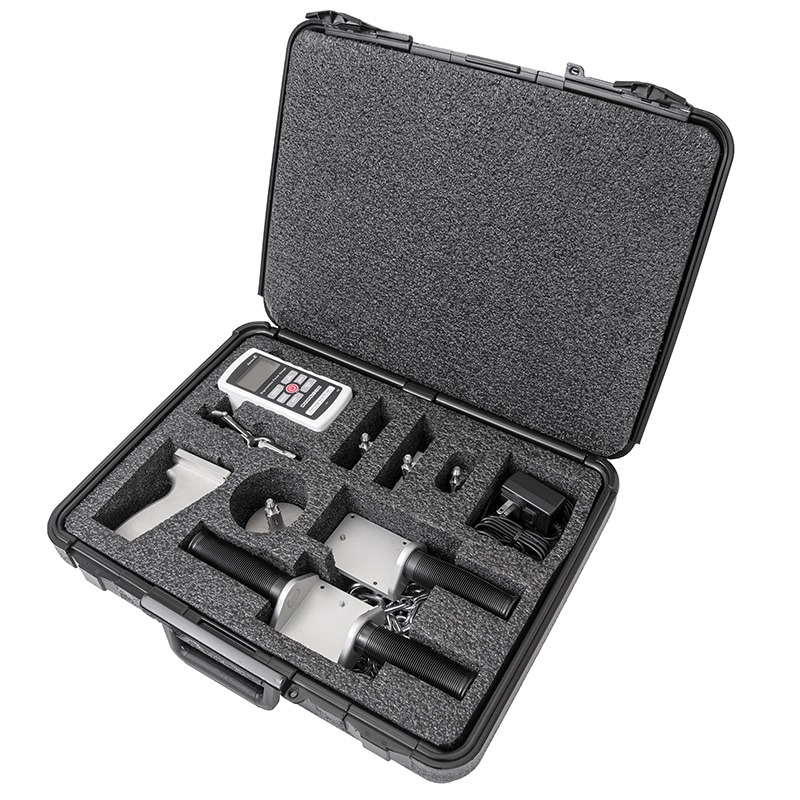

| Included items: | Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR®Lite software, MESUR®gauge 90-day trial, and user’s guide), NIST-traceable certificate of calibration with data |
| Warranty: | 3 years (see individual statement for further details) |
| Model | Description | |
|---|---|---|
| Advanced ergonomics kit, 100 lbF / 500 N | ||
| EKE-200-1 | Advanced ergonomics kit, 200 lbF / 1,000 N | |
| EKE-500-1 | Advanced ergonomics kit, 500 lbF / 2,500 N | |
| EKE-100-2 | Professional ergonomics kit, 100 lbF / 500 N | |
| EKE-200-2 | Professional ergonomics kit, 200 lbF / 1,000 N | |
| EKE-500-2 | Professional ergonomics kit, 500 lbF / 2,500 N | |
| Additional Items to Consider | ||
| 15-1004 | MESUR®gauge software | |
All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V),‘U’ for UK plug (220V), or ‘A’ for Australian plug (220V).
Example: EKE-100-1E, EKE-200-2U
| Description | Advanced Kit1 EKE-100-1 EKE-200-1 EKE-500-1 |
Professional Kit1 EKE-100-2 EKE-200-2 EKE-500-2 |
||
|---|---|---|---|---|
| ME-100 ME-200 ME-500 |
Ergonomics force gauge | |||
| E1002 | Padded attachment, square | |||
| E1003 | Padded attachment, rectangular | |||
| E1004 | Padded attachment, curved | |||
| E1005 | Padded attachment, circular | |||
| E1006 | Hook | |||
| E1007 | Chain / hook assembly | |||
| E1008 | Single handle grip | |||
| E1009 | Double handle grip | |||
| E1010 | Pistol grip | |||
| E1011 | Grip adapter | |||
| E1012 | Looped cable2 | |||
| E1013 | Myometer kit3 | |||
| E1000 | Carrying case, small | |||
| E1001 | Carrying case, large |
1 – Kits include a force gauge with 110V AC adapter. Add suffix ‘E’ for Euro plug, ‘U’ for UK plug, or ‘A’ for Australian plug. Ex: EKE-100-1E
2 – Does not fit into carrying cases.
3 – Does not fit into carrying cases. Requires E1006 hook.
