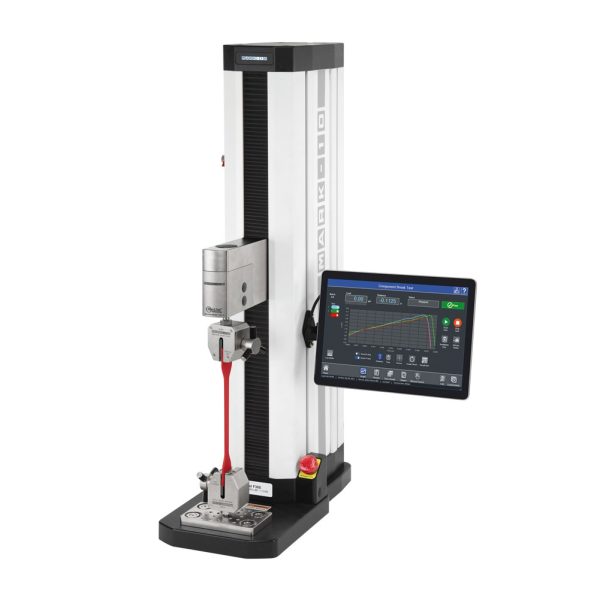

Mark-10 F105-IMT Motorized Force Tester 100 Lb/0.5 kN
Mark-10 F105-IMT Motorized Force Tester 100 Lb/0.5 kN $9,650.00 USD
Back to products
Mark-10 F505-IMT Motorized Force Tester 500 Lb/2.2 kN
Mark-10 F505-IMT Motorized Force Tester 500 Lb/2.2 kN $12,050.00 USD
Mark-10
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Click to enlarge
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN
Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN

Mark-10 F305-IMT Motorized Force Tester 300 Lb/1.3 kN

Marca

Mark-10
This family of force testers is designed for tension and compression force testing applications, with force capacities up to 500 lbF (2.2 kN). Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.  Pre-loaded tablet control panel.

SKU: F305-IMT

$10,750.00 USD

1 disponibles

1 disponibles

Agregar a la cotización
Compare
Add to wishlist
19 People watching this product now!

Payment Methods:

Descripción

Advanced Test Frames

This family of force testers is designed for tension and compression force testing applications, with force capacities up to 500 lbF (2.2 kN). Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

Load capacity*: 300 lbF
[1.3 kN]
Maximum travel: 18.0 in
[457 mm]
Speed range: 0.02 – 45 in/min
[0.5 – 1,100 mm/min]
Load accuracy
(% of full scale)
  • Test frame: ±0.1%
  • Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%
Load sampling rate: 20,000 Hz
Data acquisition rate: 1,000 Hz
Speed accuracy: ±0.2% of setting, virtually no variation with load
Distance accuracy: ±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution: 0.0005 in [0.01 mm]
Limit switch repeatability: ±0.001 in [0.03 mm]
Power: Universal input 100-240 VAC, 50/60 Hz, 300W
Fuse type: 1.2 A, 250V, 3AG, SLO BLO
Weight (test frame only): 60 lb
[27 kg]		 70 lb
[32 kg]
Shipping weight: 75 lb
[34 kg]		 85 lb
[39 kg]
Environmental conditions:
  • Indoor use only
  • Up to 6,500 ft [2,000 m] above sea level
  • Temperature range: 40 – 95°F [5 – 35°C]
  • Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
  • Mains supply voltage fluctuations up to ±10 % of the nominal voltage
  • Transient overvoltages up to the levels of Overvoltage Category II
  • Use in environments up to Pollution Degree 2
Conformance: CE
Warranty: 3 years [see individual statement for further details]


Especificaciones

Peso 42 kg
Dimensiones 50 × 60 × 100 cm
