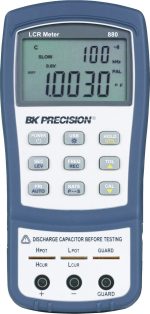

BK Precision 880 – 40,000 Count Dual Display Handheld LCR Meter
![]() |
BK |
---|
40,000 counts resolution on primary and 10,000 counts resolution on secondary display
L, C, R, and Z primary measurements
Automatic calculation of secondary parameters D, Q, Theta, ESR (Theta/ESR), and DCR
Accuracy up to 0.1% and selectable test frequencies up to 100 kHz
$466.70 USD
5 disponibles
5 disponibles
Payment Methods:
Descripción
100 kHz Handheld LCR meter
40,000 counts resolution on primary and 10,000 counts resolution on secondary display
L, C, R, and Z primary measurements
Automatic calculation of secondary parameters D, Q, Theta, ESR (Theta/ESR), and DCR
Accuracy up to 0.1% and selectable test frequencies up to 100 kHz
Fast auto range design for rapid, easy component measurements
Auto detect mode for automatic component type identification and measurement type selection (880 only)
Relative mode
Visible and audible tolerance mode
Backlit display
Data Hold and Min/Max/Average recording
USB (Virtual COM) interface
SCPI compliant commands for remote communication
Especificaciones
Peso | 0.5 kg |
---|---|
Dimensiones | 20 × 10 × 4 cm |
![]() |
